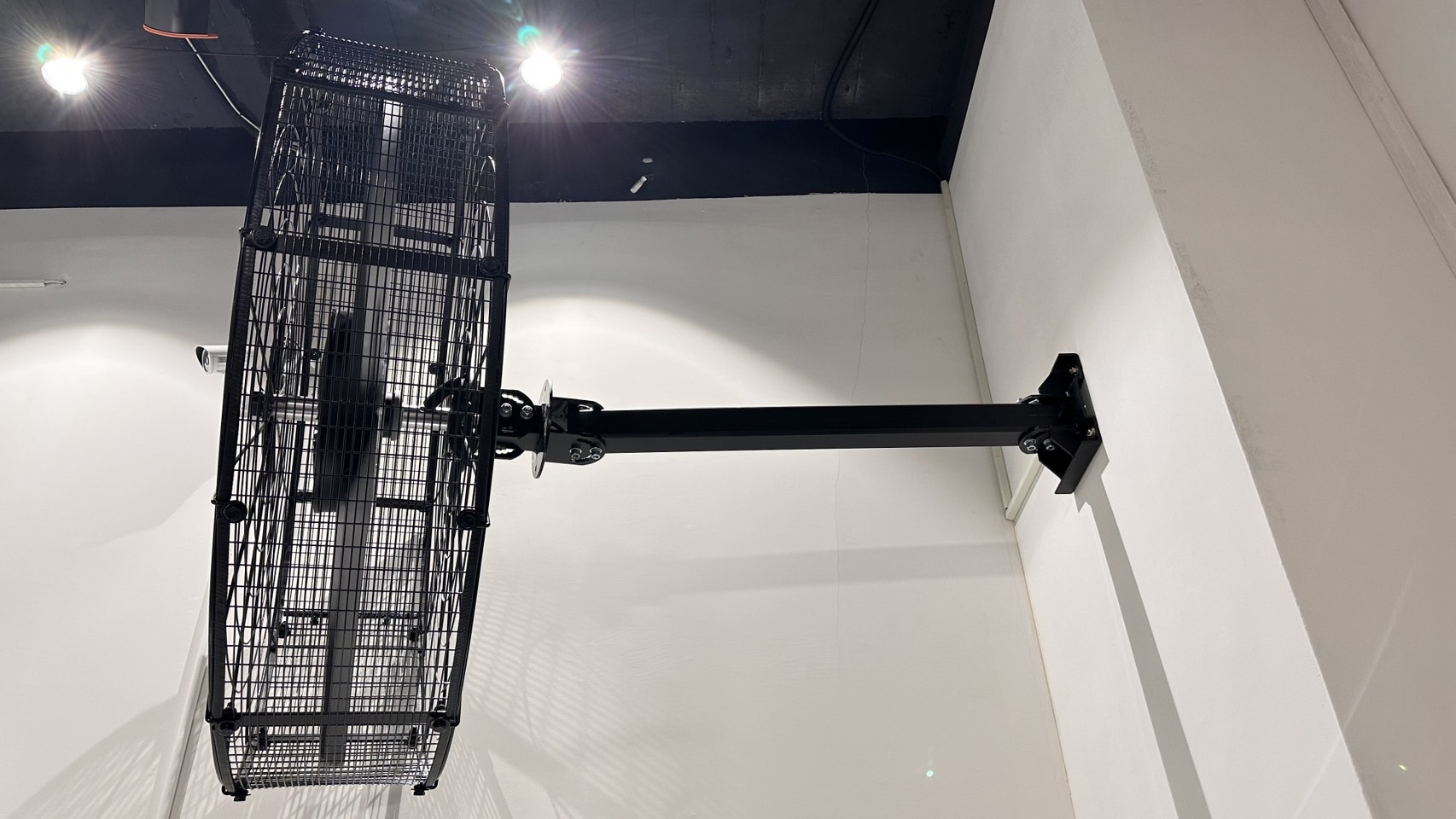

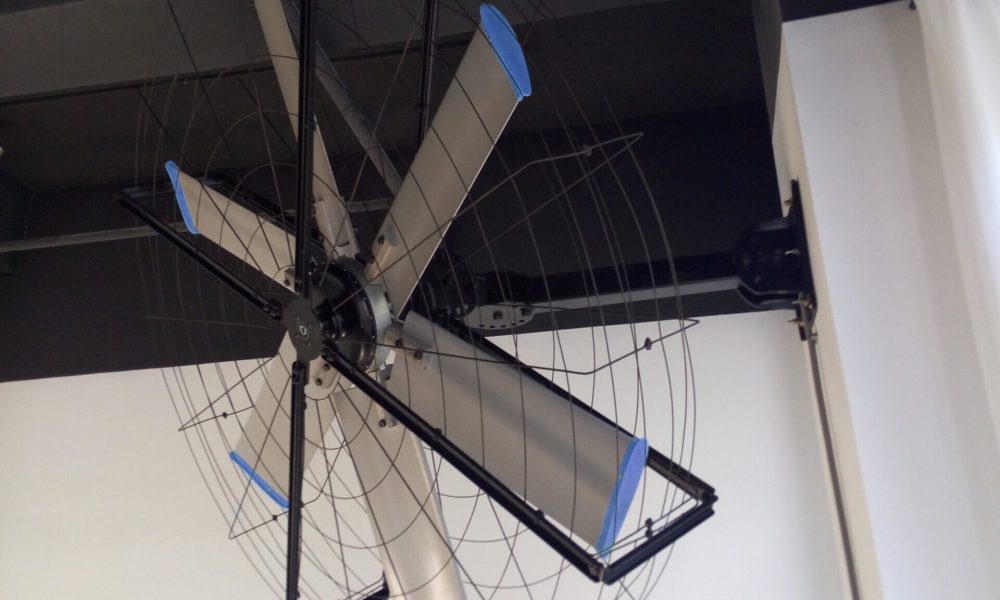

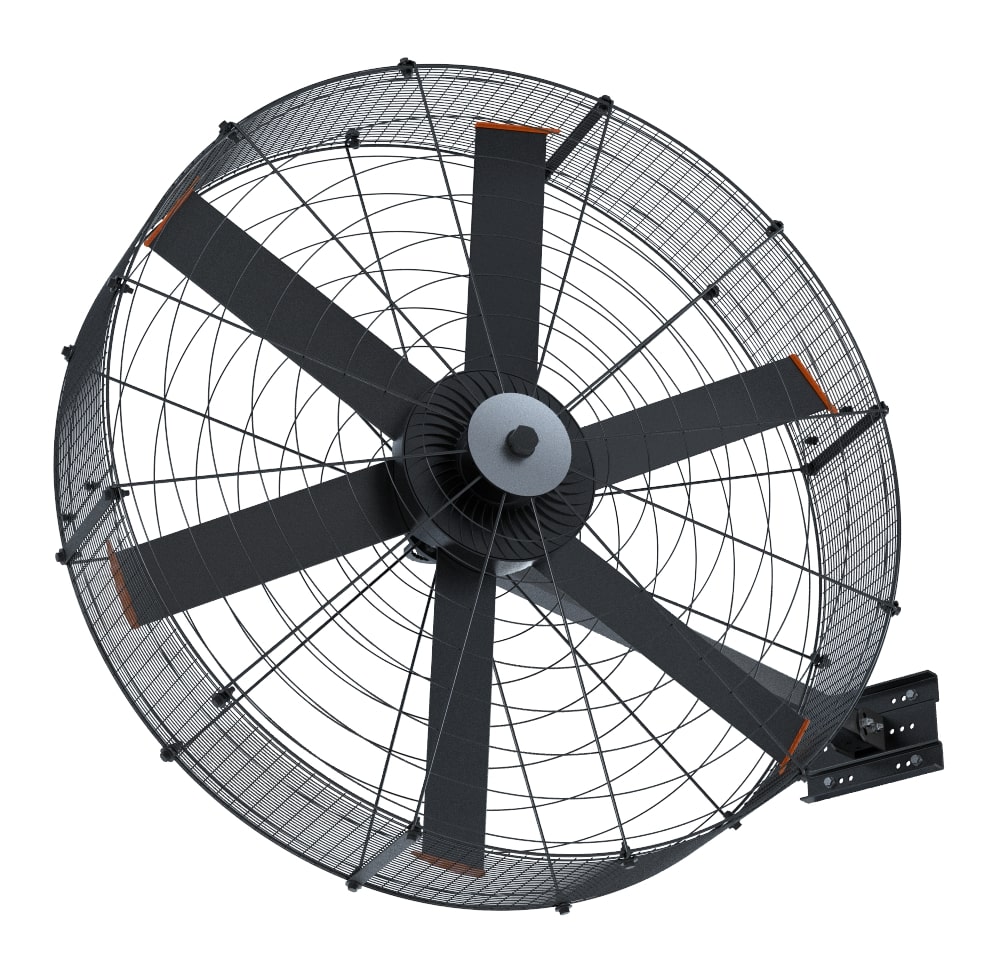

When ceiling constraints demand alternative solutions, the wall-mounted Scalar Pro brings industrial-grade HVHS air movement to any vertical surface. Its protected design and horizontal flow pattern provide focused cooling while preserving valuable floor space – ideal for facilities where ceiling fan mounting isn’t viable.
Diameters:
| 4’3″ | 6’6″ |

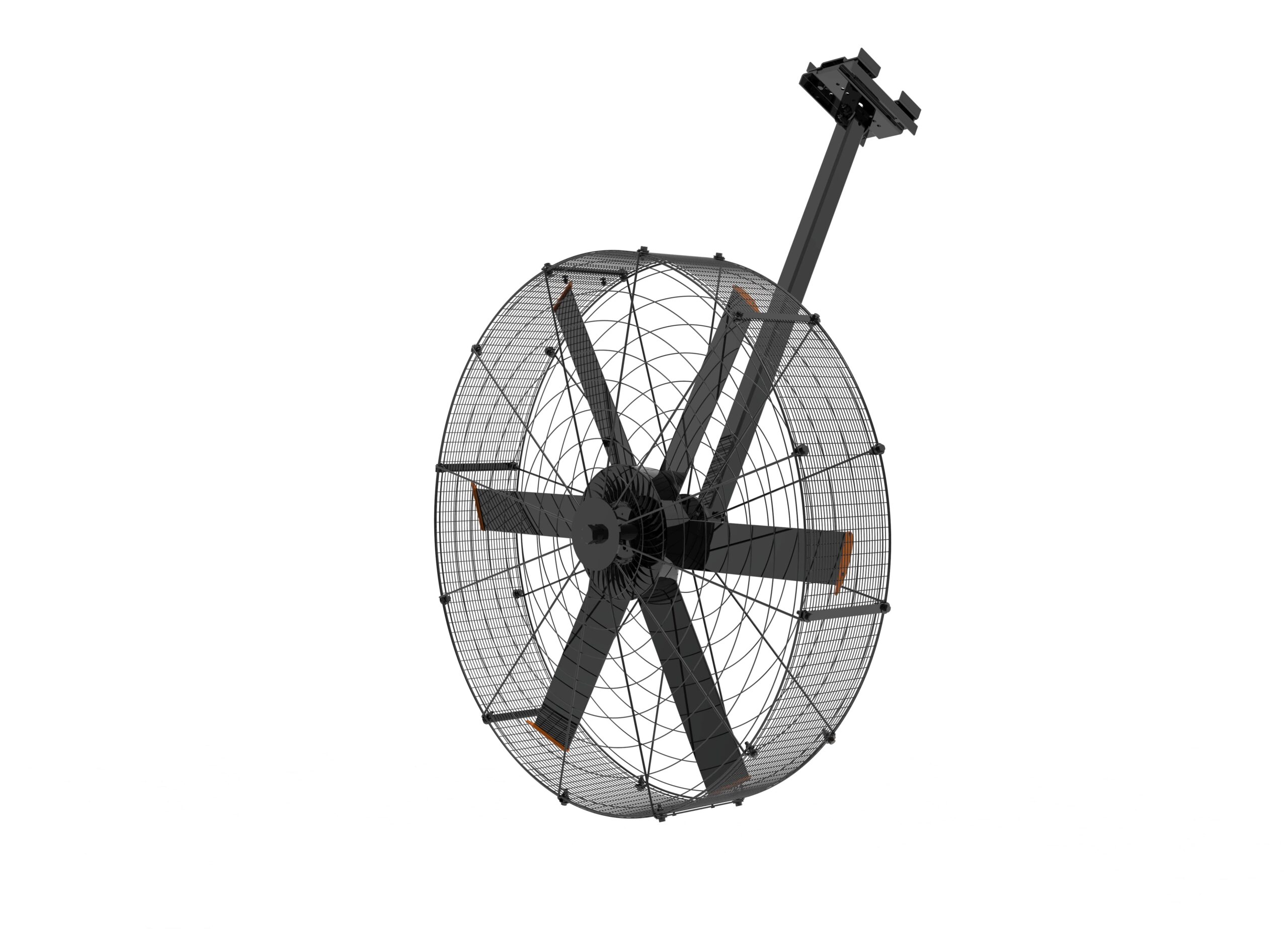

Product Includes: Pre-assembled system consisting of direct drive motor (PMSM), anodized aluminum airfoils, steel safety cage, heavy-duty mounting hardware options, wall-mounted VFD controller.
Variable-Speed Controller
Ground-level variable frequency drive for fine-tuned speed control. IP55-rated for dust and water protection.
Limited Warranty
5-year mechanical (including motor) and 3-year electrical. See Swifter Fans’ Warranty Policy for details.
Our proprietary technology intelligently draws maximum power from solar input, automatically supplementing with AC grid power only when needed. This optimal balance delivers superior efficiency while reducing operational costs.
Explore the PS-5 in action across various environments.
Find answers to common questions about the Scalar Pro HVHS Wall-Mounted Fan below.
The Scalar Pro is specifically designed for environments where overhead ceiling HVLS fans are not ideal. It provides powerful directional airflow while saving floor space and remaining out of the way.
Improved air circulation and ventilation
Space-saving wall- or ceiling-mounted design
Energy-efficient operation
Heavy-duty steel safety cage
120+ ft of directional airflow

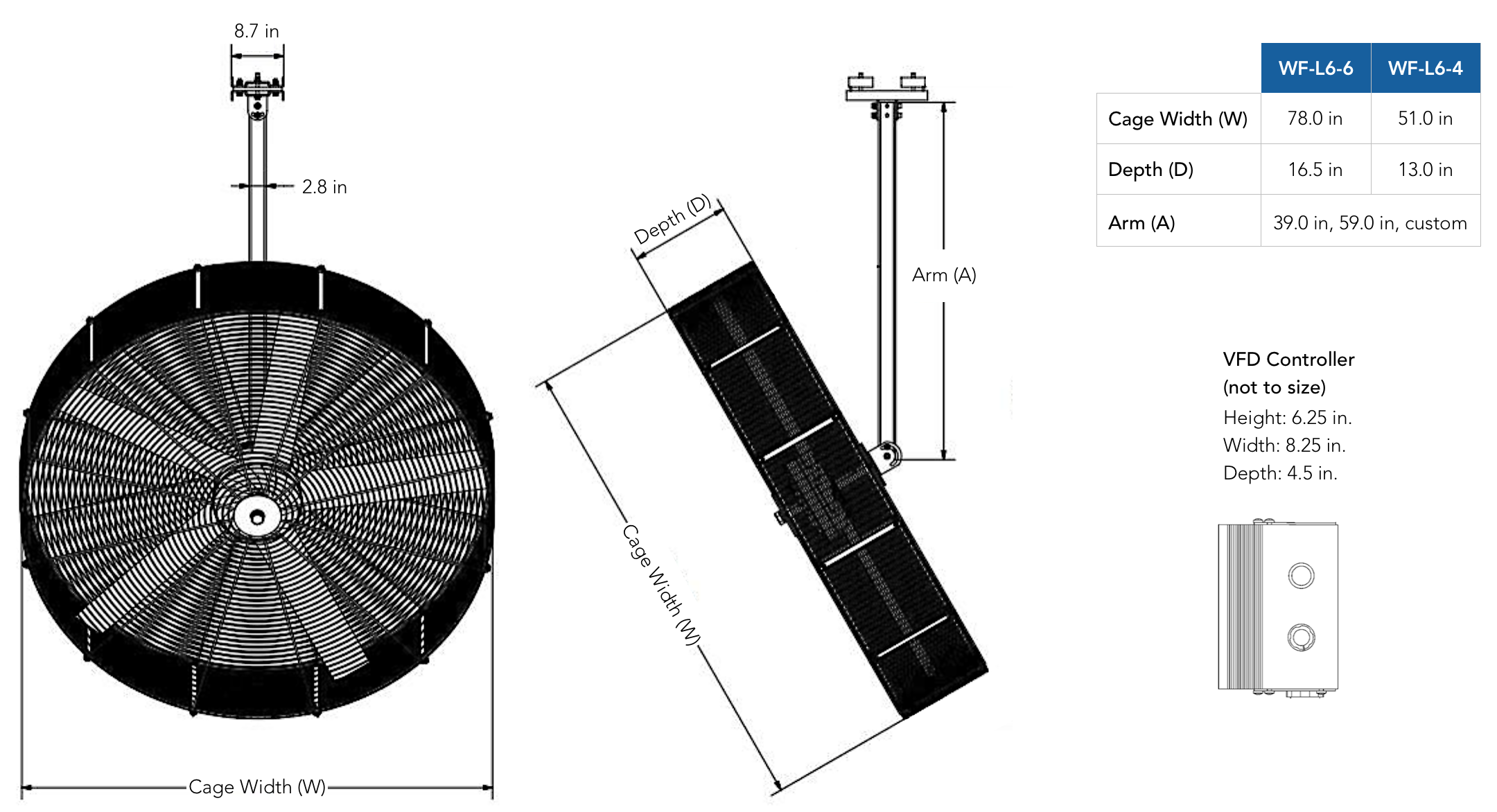

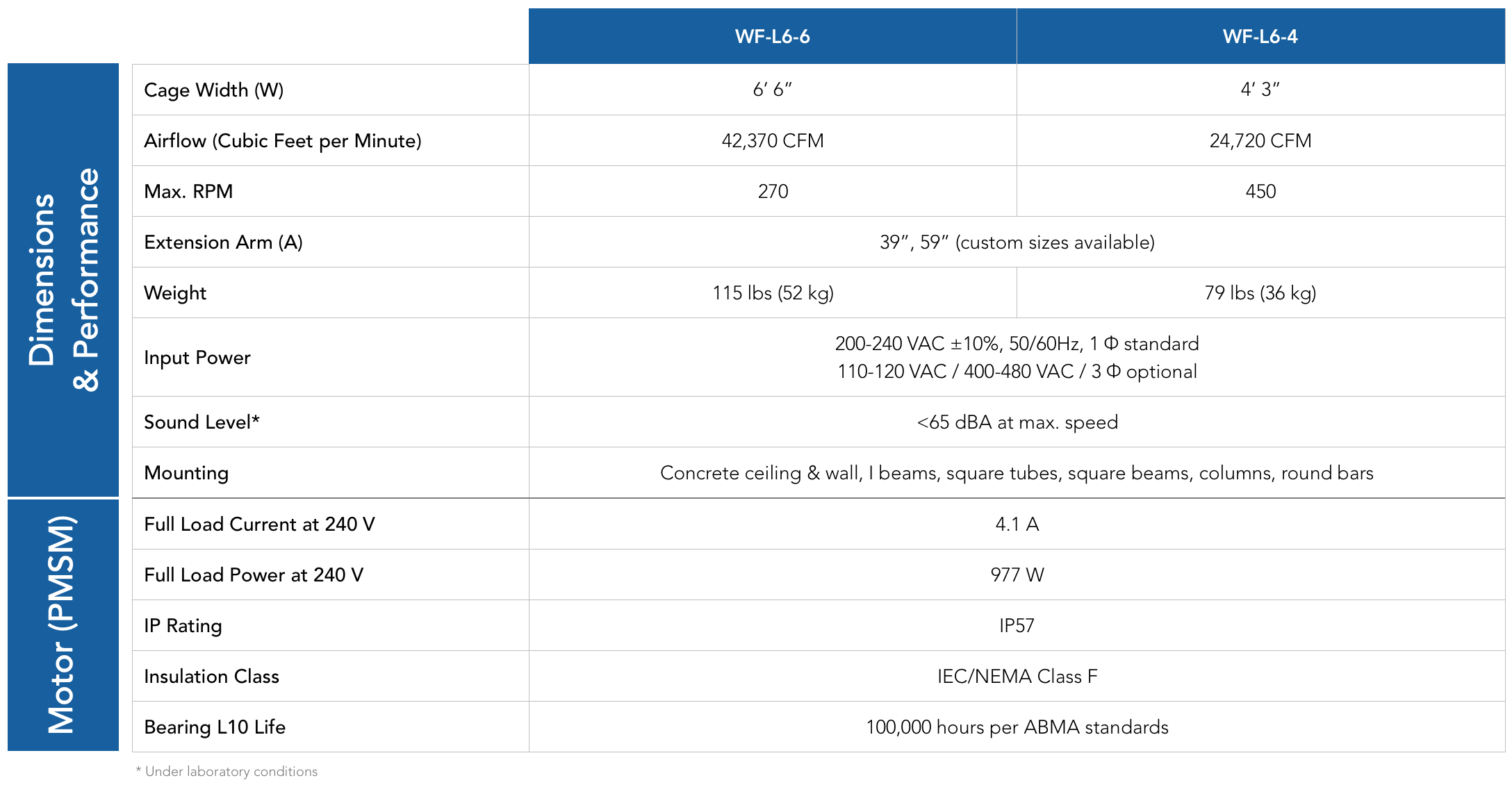

Scalar Pro comes in two cage diameter sizes of 4’3″ and 6’6″. See cutsheets under “Documents & Downloads” above for more information on dimension.
The Scalar Pro comes standard with a limited 5-year warranty that covers mechanical components and the direct drive motor and a 3-year warranty on all other electrical components. For specific warranty details, please refer to our warranty policy.
It comes with heavy-duty mounting hardware, ensuring secure installation in various industrial and commercial settings with structures including beams, joists, walls, columns, and other ceiling structures. Get in touch with the Swifter team for the full range of mounting options.
The fan operates on 1Φ (220 VAC ±10%, 50/60 Hz) standard power, with an option for 1Φ (110-120 VAC).
While primarily designed for indoor use, the IP 57 rating makes it resistant to dust and moisture, allowing for installation in covered outdoor spaces.
The Scalar Pro can be purchased by contacting Swifter or through authorized distributors. We also offer consultation services to help you choose the best options for your needs. Contact us for more information.
